Highlead GG0068-1

High Speed Lockstitch Industrial Zigzag Sewing Machine

With standard & 3 step Zigzag stitching




The Highlead GG0068-1 is a high speed zigzag sewing machine, for industrial production use, which features a stitch pattern change-over device.

The stitch pattern change-over device allows the operator to easily switch between standard zigzag stitching and 3-step zigzag stitching for increased versatility.  In the past you would have had to purchase 2 separate machines (or manually change cams) to get both of these stitch patterns.  Now operators can select: standard zigzag or 3 step zigzag by using a change-over lever which is fitted with-in the sewing machine arm.

This high speed Zigzag sewing machine features an automatic lubrication system which ensures the durability required for industrial use.

The GG0068-1 produces a high quality seam with a dynamically balanced stitch formation. Its design incorporates elements to reduce the typical problems associated with low tension Zigzag sewing.

When sewing with the standard zigzag pattern: a stitch width of up-to 5mm is available. This increases up-to 10mm when sewing with the 3 step zigzag pattern.
Standard & 3 step zigzag sewing machine
 Change over lever fitted with-in machine arm


Available for use in many different sections of the clothing & textile industry including:  underwear, bra, swim-wear, sports-wear, towels, technical textile + many other light to medium weight applications.



Features:
  • High speed lockstitch zigzag
  • Standard & 3 step changeover lever
  • Large hook
  • Up-to 10mm Zigzag width (3 step)
  • Up-to 5mm Zigzag width (standard)
  • Reverse stitch lever
  • Stitch Condenser (dial adjustable)
  • Easy width adjusting levers
  • Automatic oil lubrication
Specification:
  • Max sewing speed: 4500rpm
  • Zigzag width (3 step) 1-10mm
  • Zigzag width (1 step) 1-5mm
  • Presser foot lift by hand: 5.5mm
  • Presser foot lift by foot: 10mm
  • Needle size: DPx5 #9 to #18


Can also be set to sew with a straight style stitch

Options:

  • LED needle light kit
  • Energy saving quiet servo motor
  • Electronic needle position servo motor with easy speed and acceleration control

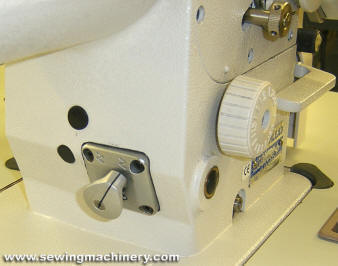

Highlead GG0068-1 zigzag sewing machine



Highlead GG0068-1 high speed industrial Zigzag Sewing Machine





Other HIGHLEAD Zigzag models:

HIGHLEAD GG0028 Heavy duty Zigzag

HIGHLEAD GG0028 Extra Long arm Zigzag

HIGHLEAD GG00328-1 Walking foot Zigzag

HIGHLEAD GG80018 Long Arm Extra heavy

HIGHLEAD GG0068-1 High Speed Zigzag



GC20618-1DZA   GC198-2   GC0388   GC198   HLK-430   GC0618-1-SC   DY-850   GC20618
