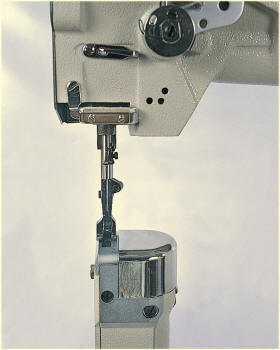

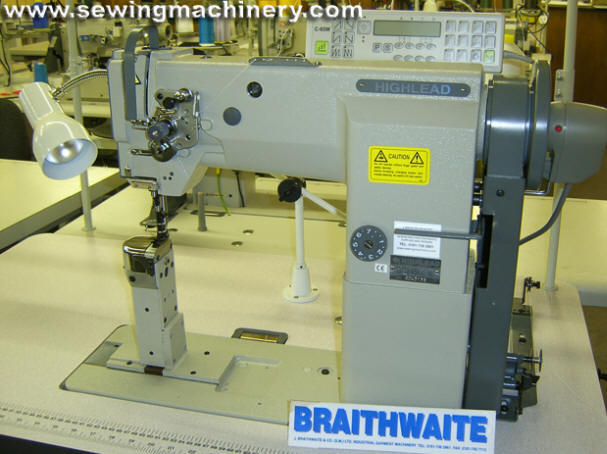

Highlead GC24608-1L  (left post bed)

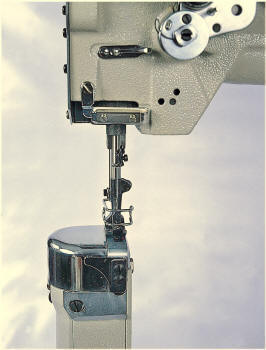

Highlead GC24608-1R (right post bed)

Post Bed single needle walking foot sewing machine

Post bed sewing machine

The Highlead GC24608-1L & GC24608-1R are single needle heavy duty compound feed walking foot lockstitch sewing machines which feature a left or right post-bed design.

The post-bed design is very useful when sewing shaped items or panels etc, and is used when you need to sew into shaped items which can not be done on a standard flat-bed machine.

The 178mm high slim post bed gives you greater access and control when sewing decorative & functional stitching on items like leather upholstery panels, shoe uppers, car seat upholstery etc.


The machine is smooth running, durable, versatile and its robust construction includes: needle roller bearings for the arm & hook shaft etc., cog driven belt assemblies and a semi-automatic oil lubrication system with sump is fitted which reduces wear & tear considerably.


As well as the post bed shape; It features a heavy duty triple feeding action by way of: bottom feed, needle feed and walking foot top feed and is fitted with a large vertically mounted hook & base for use with medium to heavy weight materials.


A safety clutch is fitted to help prevent damage to the hooks, bevel gears and other important parts, should the sewing machine become jammed or over-loaded.

The GC24608-1L & GC24608-1R are post-bed single needle, needle feed, walking foot industrial sewing machines for use on medium to heavy weight materials and are suited to sewing for example:

Leather goods, canvas/plastic, handbags, shoe uppers (leather or synthetic leather), boots, sports apparatus, office furniture, technical textiles, home upholstery, car upholstery, general panels/shapes etc.



GC24608-1L = Left Post Bed

GC24608-1R = Right Post Bed

Features:

  • Versatile Post bed shape
  • Left or right post available
  • Single needle lockstitch sewing
  • Walking foot & needle bar feed
  • Large Vertical hook & base
  • Reverse stitch lever
  • 178mm Post bed height
  • Sump mounted with oil pump
  • Automatic hook lubrication
  • Up-to 7mm stitch feature
Specification:
  • Max sewing speed: 2000rpm
  • Stitch length: 0-7mm
  • Needle bar stroke: 33.4mm
  • Take up stroke: 96mm
  • Presser foot lift by hand: 7mm
  • Presser foot lift by foot: 13mm
  • Needle size: DPx17 size 23
